Best Practices for In-Dyeing Damask Ground Weaves

The Structural Problem Inside Every Damask Vestment

A conservator at a cathedral workshop received a fifteenth-century Florentine damask chasuble for restoration. The crimson ground had faded to a dusty rose on the satin-face areas, while the sateen-face areas — which form the floral pattern — retained a deeper hue. The conservator's first instinct was to formulate a single bath that split the difference.

The split-difference bath failed. After immersion, the satin ground came up to a bright scarlet while the sateen pattern over-dyed to a near-black burgundy. The fabric had to be sent for emergency rinsing and the project delayed by three weeks.

The failure was structural, not chemical. What Is Damask Fabric? A Guide to Its Use in the Church (Mary Collings Church Furnishings) explains the core issue: damask creates pattern through the contrast between satin and sateen weave structures within the same ground. Satin-face threads expose more fiber surface to the bath; sateen-face threads are more occluded. Dye uptake is proportional to exposed surface area, not fiber weight. The same bath concentration produces different depths on each face.

Damask (Wikipedia) traces the production of this weave to Damascus and later Venice and Florence, where the technique was refined precisely because the contrast between faces created the visual pattern. That contrast — the feature that makes a damask chasuble beautiful — is also what makes in-dyeing it technically demanding.

The consequence for liturgical vestment conservation is direct: in-dyeing a damask ground requires face-specific calibration, not a single average. Silk Damask: From Royalty to Sacred Vestments (Ecclesiastical Sewing) documents the range of ecclesiastical damask uses from episcopal copes to altar frontal hangings, confirming how broadly this problem applies across the vestment studio.

Channel-Based Calibration for Damask Faces

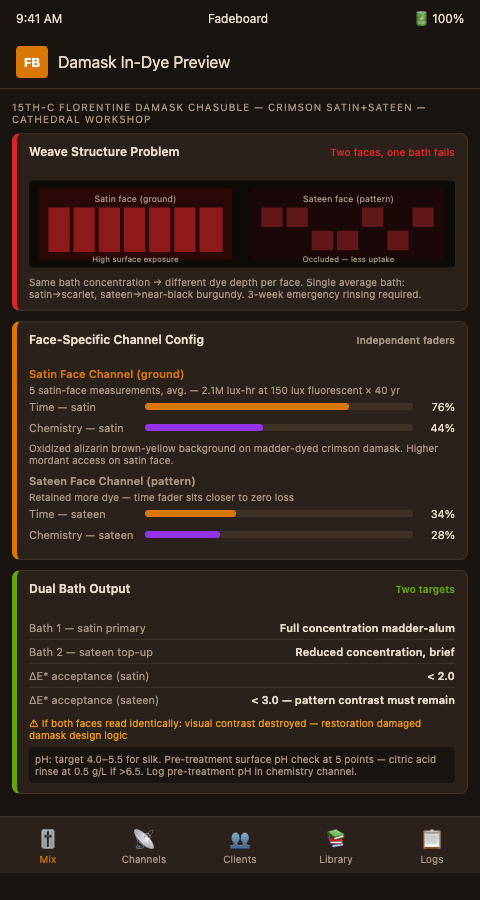

Fadeboard addresses the damask uptake asymmetry by treating each weave face as an independent channel. The soundboard metaphor is precise here: the satin fader and the sateen fader are mixed to a shared output color, but each fader's level is set by its own baseline measurement.

Setting the satin-face channel: using a microspectrophotometer or a hand-held reflectance colorimeter with a 4 mm aperture, measure at least five satin-face areas away from soil deposits and wear zones. Average these readings to produce the satin-face spectral baseline. In Fadeboard, enter this as the starting value on the satin channel. Set the time fader based on the estimated photon-dose history — a chasuble displayed on an altar for forty years under 150 lux fluorescent lighting has accumulated roughly 2.1 million lux-hours, a figure that maps to a measurable loss percentage for the dye class present.

Setting the sateen-face channel: repeat the reflectance measurement on sateen-face areas, typically the raised pattern threads. Recognition of natural silk fibers, dyes and metal threads of historical Romanian textile fragments (SAGE Journals) demonstrates that multi-analytical approaches on damask-type historical silks consistently find dye-fiber interaction patterns that differ between face structures, even in single-dye pieces. The sateen baseline will typically show a lower ΔE* from the target color — it has retained more dye — so its time fader sits closer to zero loss.

The chemistry fader on each channel accounts for degradation product residue. Oxidized alizarin on a madder-dyed red damask leaves a brown-yellow background that absorbs into both faces but at different concentrations because the faces have different physical access to the mordant bath during original dyeing.

Once both channels are set, the Fadeboard session outputs two bath targets: a primary bath calibrated for the satin ground, and a top-up bath calibrated for the sateen pattern. In practice, the conservator runs the primary bath, takes reflectance measurements from both faces, then adjusts the sateen fader in Fadeboard to determine whether a brief second bath or a surface consolidation treatment is required.

The couching preservation during brocade color restoration post addresses what happens when the damask ground also carries gold couching — a common situation in Italian high-feast vestments where the two techniques overlap.

Advanced Tactics for Damask In-Dyeing

Preventive Steps Before Bath Entry

Preventive Conservation of Textiles (Romoe Network) outlines the handling controls applicable to historic textiles in dyeing workflows. For liturgical damask, two rules matter most: never fold a wet damask under tension (the weave geometry distorts), and always support the full weight of the textile on a frame during immersion to prevent differential stretching between face orientations. Distortion changes the exposed surface area ratio between faces and invalidates the channel calibration made on a flat, dry specimen.

Delta-E Verification on Both Faces

After the primary bath and drying, measure ΔE* on both weave faces against the target spectral curve under Basic Principles of Colour Measurement (IntechOpen) spectrophotometric protocols. The satin face should read ΔE* < 2.0 against its target; the sateen face within ΔE* < 3.0, because some remaining depth contrast between faces is aesthetically correct — the pattern is supposed to read. If both faces read identically, the visual contrast has been destroyed and the restoration has damaged the damask's design logic.

Temperature Gradient Protocols

Silk protein fibers are sensitive to temperature above 85°C. At or above 90°C, fibroin denaturation accelerates, and a heavily aged piece may show surface felting during the bath. Run a pilot bath at 75°C on extracted threads from a seam allowance. If uptake is insufficient at 75°C, increase to 80°C in 5° increments, measuring at each step. Log each increment in the Fadeboard chemistry channel as a temperature variable — it affects the equilibrium dye concentration and must be accounted for in the bath output target.

Ecclesiastical Silk Lightfastness After Restoration

Confirm lightfastness of the restored dye on a test swatch before returning the vestment to active use. The ecclesiastical silk lightfastness standards post covers the ISO 105 Blue Wool scale testing protocol and what target ratings are appropriate for vestments in continuous sanctuary use. A restored damask that reads correctly today but fades to a muddied tone within five liturgical seasons has failed the restoration brief, regardless of technical precision at the bath stage.

Inpainting for Localized Losses

Where individual warp or weft threads have broken and been replaced with compatible silk, in-dyeing alone will not produce a perfect match — the new fiber has no mordant history and will uptake dye at a different rate than aged silk. For these areas, surface inpainting with a dilute wash of Winsor & Newton watercolor calibrated against the Fadeboard target RGB output achieves a closer visual match than a second bath. Cheek highlight inpainting techniques works through the surface application logic that transfers directly to fine silk thread-level touch-up.

Pre-Dyeing pH Adjustment

Silk dyes most efficiently at pH 4.0–5.5. An aged damask vestment that has been stored in acid-free tissue may have surface pH significantly different from a freshly washed silk. Measure the surface pH with a non-contact indicator strip at five points on the ground. If pH exceeds 6.5, a brief citric acid rinse at 0.5 g/L normalizes the fiber surface without affecting the mordant residue. Log the pre-treatment pH in the Fadeboard session as a chemistry-channel variable.

Final Note for Damask Conservation

Ecclesiastical damask in-dyeing is a two-channel problem, not a one-bath problem. Setting independent faders in Fadeboard for each weave face before bath preparation is not bureaucratic caution — it is the step that prevents the systematic over-dyeing that has ruined liturgically significant vestments through well-intentioned but structurally naive restoration. The channel record produced by Fadeboard also gives the diocesan reviewer documented evidence of why two bath concentrations were applied rather than one, which matters enormously when the vestment in question carries centuries of theological and community meaning.

For your next liturgical damask project, open a Fadeboard session with separate satin-face and sateen-face channels, measure reflectance baselines on both weave faces, and produce a dual-target bath specification before preparing any dye. The chasuble or cope will emerge from the bath with its weave contrast intact and its liturgical color restored to the standard the congregation recognizes.
