How to Adjust Charge Timing for Asymmetric Building Geometries
Why Symmetric Sequencing Logic Fails Asymmetric Structures
The standard implosion design methodology — identify the primary structural columns, calculate charge weights, assign delay intervals that sequence a progressive collapse toward a predetermined fall direction — was developed on and validated against rectangular, symmetric structures. When applied to an L-shaped building, a tower with a corner core rather than a central core, or a structure with setbacks above floor 20, the same methodology produces a sequence that looks correct on paper but drives a collapse mechanism the building's geometry will not support.
Asymmetric building geometry charge timing requires a different analytical framework from symmetric column-removal sequencing — one that explicitly models the torsional response generated by geometric imbalance rather than assuming it away. Uneven building demolition challenges extend beyond the delay schedule: an asymmetric floor plate blast timing plan must also address the collapse front trajectory, the exclusion zone geometry, and the debris footprint prediction, all of which shift when the structure doesn't fall symmetrically.
Asymmetric buildings exhibit coupled torsional-translational response that alters predicted collapse direction. In a symmetric structure, if you remove all ground-floor columns on the south face within a short delay window, the building falls south. In an asymmetric structure with an off-center core, removing the same column pattern generates a torsional moment — the building begins to rotate as it falls, not translate cleanly in one direction. The fall direction is a vector sum of translation and rotation, and without explicit torsional analysis, you cannot predict where the debris footprint lands.
The CPUC investigation into the 2013 California implosion injury found that charge design was based on template procedures without adequate adjustment for the specific structural geometry. That finding applies broadly: template-based charge timing is a liability when the building departs from the template's assumptions.
The Charge Timing Adjustment Framework for Asymmetric Geometries
The musical analogy for asymmetric implosion sequencing is a composition written in odd time signatures. A standard 4/4 symmetric building sequence — remove north columns, then south, then core — reads cleanly. An asymmetric building needs a score written in 5/8 or 7/4: uneven groupings, cross-bar syncopation, irregular rests. The timing relationships between charge groups must compensate for the structural irregularity, not ignore it.
Step 1: Structural geometry classification. Before assigning any delay intervals, classify the building's asymmetry type. Setback asymmetry (floor plates reduce at a certain height), plan asymmetry (L-shape, T-shape, or wing geometry), and core asymmetry (core offset from centroid) each drive different torsional response modes. A building can have multiple asymmetry types simultaneously. Delay timing and column-removal sequence are the key parameters controlling collapse mechanism — and for asymmetric structures, the removal sequence must explicitly counteract the torsional moment generated by geometric imbalance.
Step 2: Calculate the structural centroid and core offset. For each floor block that contains charges, calculate the distance from the floor plate's centroid to the structural core (or primary lateral load-resisting system). This offset is the source of torsional coupling. When you remove columns asymmetrically about this centroid, the resulting moment arm determines the rotational component of the collapse vector. A larger offset means a more pronounced rotation — and requires more aggressive timing compensation on the heavier or stiffer side of the structure.
Step 3: Apply staggered delay intervals across the asymmetric axis. On the lighter or less stiff side of the floor plate, apply slightly shorter delay intervals to initiate collapse there first. On the heavier or stiffer side, apply longer delays. The goal is to make the column failures arrive at the structural centroid in a sequence that produces a net translational moment — fall direction — rather than a rotational one. The specific delay differentials require structural analysis; there is no universal table because each building's geometry is unique.
Step 4: Simulate the collapse sequence before finalizing timing. Simulation of a 100-meter asymmetric high-rise required special fracture algorithms beyond those used for regular geometries, which means off-the-shelf implosion simulation tools may not adequately model the torsional response of severely asymmetric structures. Commission a site-specific simulation for any building with core offset greater than 15% of the shorter floor plate dimension, or any structure with a setback that removes more than 30% of floor plate area above a given level.

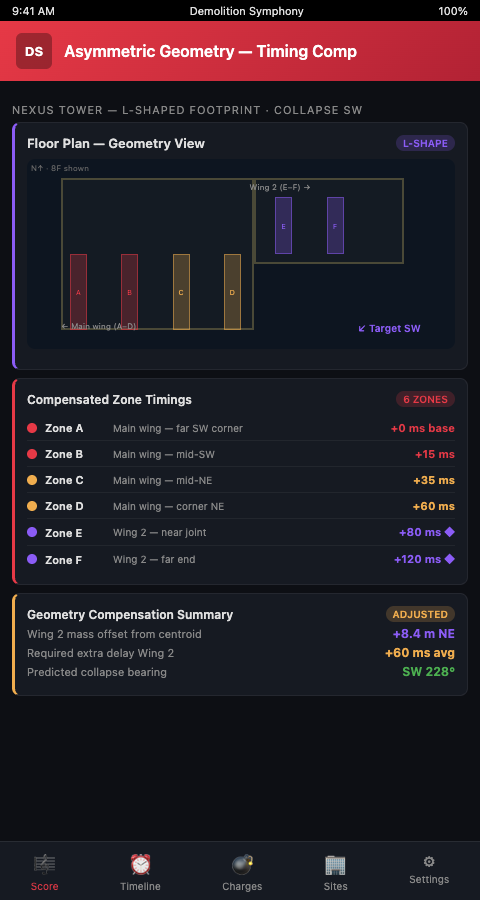

Step 5: Map adjusted delay intervals onto the Demolition Symphony Planner score. The floor-by-floor charge map becomes the instrument for visualizing the asymmetry compensation. Each floor block shows not just delay intervals but the differential — how much longer the heavy-side groups fire relative to the light-side groups. When you can see the full 40-floor score with asymmetry differentials marked, you can review the entire sequence for consistency before a single detonator is placed. The charge placement maps for steel-frame buildings provide the column-level foundation; the asymmetry timing layer sits above that in the score.
Advanced Tactics: Setbacks, Staged Collapses, and Simulation Limits
Handle mid-height setbacks as separate collapse stages. A building with a significant setback at floor 20 — where the upper floors have a substantially different floor plate than the lower floors — should be treated as two structurally distinct entities stacked vertically. Design the upper-block collapse to bring that portion down onto the lower-block footprint before the lower block initiates. The timing gap between upper-block and lower-block initiation must account for the time it takes the upper debris mass to descend and load the lower structure — typically 1.5-2.5 seconds. This is a staged collapse, not a single progressive collapse, and the delay network must reflect that distinction.
Reassess the exclusion zone after adjusting for torsional compensation. When timing differentials are applied to counteract torsional response, the resulting fall direction vector shifts compared to the symmetric baseline. Recalculate the debris footprint prediction — including the rotational scatter component — with the adjusted timing before finalizing the exclusion zone. The 40-story sequencing case study illustrates how exclusion zone revisions emerge from iterative timing adjustments; for asymmetric geometries, expect at least one exclusion zone revision after the torsional compensation is calculated.
Apply the same asymmetry logic to the structural assessment phase. An implosion suitability assessment for an asymmetric building must evaluate whether the torsional response can be adequately controlled through timing adjustments alone, or whether pre-weakening — manual removal of selected structural elements before the blast — is required to reduce the effective stiffness on the heavy side. Some severely asymmetric structures are not good candidates for implosion without significant pre-weakening; the assessment should determine that before the contract is signed.
Cross-apply lessons from curved roof structural load paths to buildings with non-planar floors. Stadium structures with curved roof systems develop load paths that do not behave like planar frames — the same is true for any high-rise with curved or inclined floor plates. The principle of identifying the actual load path before designing the removal sequence applies equally. Do not assume that removing the columns shown on the structural drawing is sufficient; trace the actual load transfer path from the point of removal through to the foundation, accounting for the geometry's influence on that path.
Document the asymmetry compensation rationale explicitly in the sequence plan. Regulatory reviewers and forensic investigators should be able to read the sequence plan and understand why floor-14 west-side groups have 22-millisecond delays while floor-14 east-side groups have 31-millisecond delays. A one-paragraph narrative explaining the torsional analysis basis for each differential prevents the timing plan from looking arbitrary — and protects the responsible engineer if post-blast review questions the design.
Precision Timing for Structures That Don't Read Symmetrically
Demolition Symphony Planner gives urban high-rise implosion coordinators the visual workspace to map asymmetry differentials floor by floor, see the full collapse sequence as a coherent score, and adjust timing on one side without losing sight of the other.
The five-step framework for irregular structure implosion planning described above works because it makes the asymmetry explicit at every stage — geometry classification, centroid analysis, staggered delay assignment, collapse simulation, and score documentation — rather than treating asymmetry as a complication to be handled after the baseline sequence is set. For non-rectangular building demolition sequence planning, the baseline sequence is the asymmetry-adjusted sequence from the start. Teams that attempt to retrofit torsional compensation onto a symmetric baseline sequence typically discover the problem during simulation, which requires substantial rework rather than incremental adjustment.
