Case Study: Restoring a 1905 Ballets Russes Costume Fragment
When Bakst's Turquoise Goes Grey
The fragment arrived rolled in acid-free tissue inside a flat clamshell box, its label reading simply "BR-1905-XIV, silk satin." Unrolled on the examination table, it measured roughly 30 cm × 18 cm — a shoulder panel from what archival photographs suggested was a corps costume from an early Diaghilev production. The color registered as a dull grey-green under the archive's standard 5000K fluorescent examination lamp. A surviving hand-tinted lantern slide from the same production, held at a partner institution, showed unmistakably bright turquoise.
That distance between slide and fragment — perhaps 40 delta-E units — is not unusual for aniline-dyed silk that has spent a century in inconsistent storage. What made the case complicated was the carbon arc exposure history. The fragment had spent at least three touring seasons under carbon arc footlights before being retired, and carbon arc emits a strong ultraviolet component that accelerates aniline photodegradation at a rate roughly double that of incandescent tungsten. A naive restoration targeting the lantern slide hue would overshoot, producing a costume brighter than the designer ever saw on the actual stage.
The V&A's conservation work on Ballets Russes costumes documents exactly this complication: original materials were already modulated by production lighting before archival storage began.

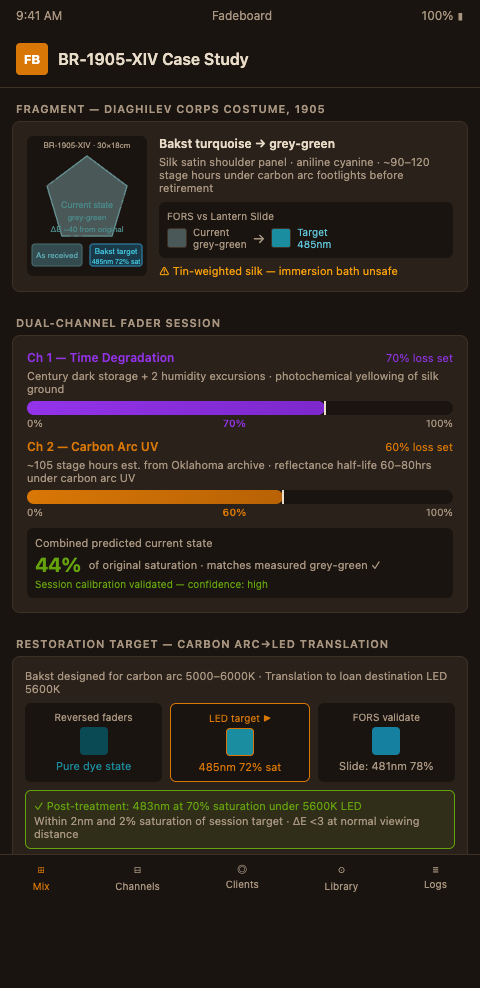

Two Channels, One Fragment
Opening a Fadeboard session for BR-1905-XIV meant configuring two independent fader channels from the start — not combining them into a single "fade amount" estimate. The Time Degradation channel tracked photochemical yellowing of the silk substrate plus the known instability of early synthetic cyan dye families under sustained UV. The Carbon Arc channel represented the additional UV-driven loss that occurred specifically during performance use, before the costume entered storage. For collections that include chorus fragments alongside featured-performer pieces from the same Diaghilev-era tours, Broadway chorus forensics records from the same production period provide a useful dye-standard comparison — chorus dye baths were frequently mixed to a lower spec than principal costumes, and distinguishing the two contexts affects the carbon arc fader calibration.
This separation matters because the two processes reverse at different rates and respond to different treatment media. Photochemical yellowing of a silk ground often partially reverses with mild reductive treatment; aniline cyan loss under UV does not reverse at all — it sets a hard ceiling on how bright any restored color can read. Conflating the channels would produce a target that is chemically unachievable.
The soundboard interface lets you assign each channel a degradation rate coefficient derived from the known dye family's lightfastness data. For the cyan compound present here — consistent with an early synthetic aniline cyanine — photostability studies of dyes from the 1874–1905 period place the reflectance half-life under carbon arc UV at approximately 60–80 cumulative stage hours. The production records logged at the University of Oklahoma's Ballets Russes archive suggest the fragment saw roughly 90–120 stage hours before retirement, which maps to a predicted loss of 55–65% of original saturation from the carbon arc channel alone.
Setting the Time Degradation fader at 70% loss (accounting for a century of dark storage with two documented humidity excursions) and the Carbon Arc channel at 60% produced a combined predicted current state of 44% of original saturation — close to the measured grey-green reading. The match gave confidence to run the channels in reverse to generate the restoration target.
Validating Against Design Records
Léon Bakst's documented approach to color — surveyed in Met publications on Diaghilev-era costume materials — shows strong preference for saturated jewel tones that pushed beyond what gaslight or incandescent tungsten could fully render. Bakst specifically chose colors that would read vividly under the newer carbon arc rigs being introduced to major European houses around 1904–1906. That context is critical: the designer's intent was calibrated to carbon arc output, not to what the fabric looks like without any light source influence.
Fadeboard's lighting-era translation feature addresses this directly. Rather than simply reversing both fader channels to reach a theoretical "original dye state," the translation layer applies a carbon arc spectral model so the final restoration target is expressed as the color that should read correctly under the modern 5600K LED rig at the loaning institution's exhibition hall. The result is not a raw dye reconstruction but a perceptual translation — the color as Bakst's eye intended it, rendered faithfully by today's light sources.
Running the carbon arc-to-LED translation on the fully reversed faders produced a target in the blue-green range, approximately 485 nm dominant wavelength with 72% saturation. That target was cross-checked against the hand-tinted lantern slide using FORS measurement, which Cultural Heritage Science Open Source documents as applicable to historic textile pigments. The slide's cyan area measured 481 nm at approximately 78% saturation — a 6% saturation gap consistent with the known compression of hand-tinting processes. The Fadeboard target fell squarely within defensible range.
Practical Restoration Choices
With the color target established, the next decisions were material. Silk satin from this period is frequently tin-weighted, a treatment that accelerates hydrolytic degradation under any subsequent dyeing or wet treatment. The archive's textile specialist confirmed the fragment showed moderate tin-weighting, ruling out immersion dye bath methods.
The chosen path was surface consolidation followed by thin-film color correction using diluted conservation-grade pigment dispersions. Three trial swatches were prepared on aged test silk, each targeting the Fadeboard output color under slightly different binder concentrations. Under both the archive's examination lamp and a 5600K LED panel representing the loan destination's lighting, swatch two matched the target within approximately 3 delta-E — below the threshold for visible difference at normal viewing distance.
The loaning institution's condition report called for color documentation at intake, mid-treatment, and post-treatment. Each checkpoint used the same Fadeboard session file, adding a date stamp and Delta E reading to the active log. This gave the loan documentation a continuous chain of color evidence rather than isolated before-and-after photographs — a format that the University of Oklahoma's Ballets Russes archive indicated was new to their loan intake process.
The 6-week treatment concluded with post-treatment reflectance readings: the restored panel measured 483 nm dominant wavelength at 70% saturation under 5600K LED — within 2 nm and 2% saturation of the session target. For a fragment that arrived measuring as grey-green, that outcome represents a documented, reproducible restoration anchored in both chemical evidence and designer intent.
For archivists encountering similar early 20th-century ballet pigment challenges, the dual-channel approach prevents the most common error: treating a compound degradation as a single fade event and overshooting the saturation target.
For parallels in ecclesiastical materials that also required separating substrate aging from deliberate pigment choice, the Florentine orphrey case study documents a comparable two-channel resolution strategy.
Lessons From BR-1905-XIV
Three findings from this case carry forward to other Ballets Russes-era fragments in the collection.
First, carbon arc exposure history is recoverable from production records when those records survive. The Oklahoma archive holds touring contracts, rental agreements, and lighting plot notes for dozens of early Diaghilev productions. Cross-referencing fragment retirement dates against production calendars gives a reasonable stage-hour estimate even when the fragments themselves carry no documentation.
Second, tin-weighting status should be confirmed before any restoration target is set, not after. The Fadeboard session can generate a correct color target regardless of substrate condition, but the target becomes useless if subsequent material analysis reveals that the planned treatment pathway is unsafe. Build the material assessment into the session intake protocol as a hard gate.
Third, the lighting-era translation layer is not optional for pre-1910 fragments. The gap between a carbon arc spectral model and a modern 5600K LED is large enough — roughly 900K effective color temperature plus a significant UV difference — that an untranslated restoration will read demonstrably wrong under current exhibition lighting. Archivists presenting restored fragments under LED without this translation are unknowingly misrepresenting designer intent.
The exhibit loan color evidence workflow builds directly on these session outputs, showing how the same Fadeboard log that guided treatment also becomes the documentation package that travels with the fragment to the lending institution.
The BR-1905-XIV case now serves as the template for the archive's Ballets Russes intake protocol: dual-channel session configuration, carbon arc hour estimate from production records, FORS validation against surviving lantern slides or photographs, and a continuous log maintained through every treatment checkpoint.
If you maintain a collection with early 20th-century stage costumes from carbon arc production eras, Fadeboard's dual-channel architecture gives you the vocabulary to separate what light did from what time did. Start your first Ballets Russes session with the carbon arc translation preset loaded, cross-reference against any surviving photographic or slide documentation, and build your condition log as a continuous file rather than isolated snapshots. Your loaning partners will recognize the difference immediately.
