Protecting Active Rail Lines During Adjacent Bridge Removal
When Debris Meets Live Track
The FRA Bridge Service Interruptions report documented over 8,700 railroad bridge service interruptions in a recent analysis period, with foreign object intrusion — debris from adjacent construction activities — identified as a recurring cause category. Protecting active rail lines during bridge removal is not a safety measure that can be bolted onto a completed structural plan. It must be designed into the demolition sequence from the first measure, because every cut, crane swing, and debris-generating action within the influence zone of an active track corridor requires a protection method that was engineered before equipment arrived.
The BNSF Railway Bridge Demolition Guidelines establish that no more than one track may be rendered impassable at any time during adjacent demolition work without specific railroad authorization. Railroad protection adjacent demolition requires a defined safety buffer zone rail bridge demo teams must maintain — sized to the demolition method, the falling height of materials, and the rail operator's setback standard. Protecting active rail lines bridge removal starts with establishing that safety buffer zone before any cutting tool or crane swings into the influence zone of the track. The TxDOT Railroad Requirements for bridge projects specify that demolition debris must not enter ballasted track under any circumstances — not as a best practice, but as a contract condition with stop-work authority. Yet many demolition plans treat rail shielding overpass demolition needs as a safety appendix rather than a structural planning constraint, discovered late and managed reactively.
Bridge demo near live track requires every crane radius, every cutting tool position, and every debris net location to be dimensioned against the track centerline before the measure that generates the debris is authorized to begin.
The 49 CFR Part 214 Railroad Workplace Safety regulations require a designated Roadway Worker In-Charge for any work that creates an interface between demolition activity and an active track corridor. This is not a coordinator role — it is a legal designation with specific authority to halt work if track protection conditions are not met. The Demolition Symphony Planner is built to treat that authority as a structural gate: the Roadway Worker In-Charge clearance is a prerequisite notation that must be satisfied before any phase-measure touching the rail exclusion zone may begin. Bridge demolition near live track requires this gate discipline at every measure, not just at project initiation.
Scoring Rail Protection into Every Phase

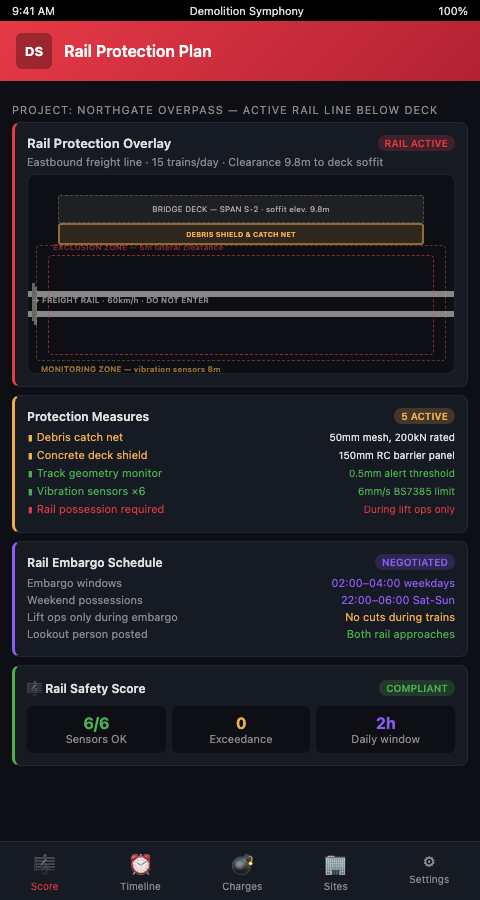

The Demolition Symphony Planner treats protecting active rail lines during bridge removal as a score element equivalent to structural phase notation — not a parallel safety document, but a condition written directly into each measure that involves work within the rail influence zone. Every phase that could affect the track carries three embedded notations: the protection method active, the exclusion zone boundary confirmed, and the Roadway Worker In-Charge clearance logged.
Exclusion zone mapping as the score's key signature. Before the first phase-measure is written, the Demolition Symphony Planner requires an exclusion zone map as the score's key signature. The map defines the rail corridor boundary, the standard setback distance required by the applicable railroad (BNSF, Union Pacific, Amtrak, and freight short lines each maintain their own setback standards), and the expanded exclusion zone that applies during active cutting, breaking, or lifting over the track. This map is not filed separately — it is embedded in the score header and referenced in every measure notation that involves work within the influence zone.
Protection method notation per phase. For bridge demo near live track, the FHWA structural safety guidance on bridge demolition requires an engineering analysis for each demolition phase. The Demolition Symphony Planner captures the outcome of that analysis as a protection method notation: is the protection method for this phase a cantilever net system, a purpose-built debris shield structure, a temporary overhead protection platform, or a track outage window during which train movements are suspended? Each method is notated as a prerequisite for the phase — the structural action cannot begin until the protection method notation is confirmed.
Shoofly and shunting notation for temporary track relocation. The Union Pacific Public Projects Manual details shoofly track designs — temporary parallel tracks that reroute train movements around the work zone. A shoofly is not a last-resort option; it is a pre-planned score element that the Demolition Symphony Planner writes into the phases where bridge proximity makes debris-free operation impossible without temporary track relocation. The shoofly installation is written as its own phase-measure sequence, preceding the bridge demolition measures it enables, with a corresponding shoofly removal sequence written after those measures are complete.
Track impassability windows as coordinated rests. The BNSF Guidelines' one-track impassability rule means that high-risk demolition phases — where the structural work cannot be designed to avoid all debris risk — must be scheduled during a formally authorized track outage. These outages are negotiated in advance with the railroad operator and written into the score as coordinated rests: the track goes quiet, the demolition measure proceeds, and the track is cleared and inspected before train movements resume. This is directly analogous to the traffic window approach used for highway overpasses, and the adjacent infrastructure risks framing that governs both contexts shares the same underlying logic.
The FRA Bridge Safety Standards Compliance Manual requires scale drawings of the work area relative to track geometry for any adjacent demolition project. The Demolition Symphony Planner imports that drawing as the spatial context for exclusion zone notation, creating a single reference that both the structural engineer and the railroad coordinator recognize.
Advanced Tactics for Rail-Adjacent Demolition
Vibration monitoring as a parallel score track. Demolition vibration transmitted through soil or structure can loosen ballast, shift track geometry, and trigger signal system false positives. The vibration isolation techniques for historic structures apply directly to rail-adjacent bridge demolition. The Demolition Symphony Planner writes vibration monitoring as a parallel track in the score: a seismograph positioned at the nearest rail and a threshold PPV value that triggers a phase hold if exceeded. This is not a field call — it is a written gate that the score enforces automatically when sensor readings are fed into the planning system.
Scale drawing import and clearance dimensioning. Every cut location, crane radius, and debris net position is dimensioned against the track centerline in the Demolition Symphony Planner's spatial notation. A saw cut at 14 feet above rail level on the south side of a pier requires a different debris containment specification than a cut at 8 feet on the north side with active track within 12 feet. The score records these dimensions alongside each phase-measure so the protection specifications are traceable to actual geometry rather than generic proximity categories.
Communication protocol notation for Roadway Worker In-Charge. The Demolition Symphony Planner writes the Roadway Worker In-Charge communication protocol directly into the phase notation: the clearance request must be made a minimum number of hours before the phase begins, the confirmation method (radio channel, written authorization, electronic approval) is specified, and the clearance expiration time is logged. A clearance that expires mid-phase triggers a hold cue in the score — work pauses and the clearance renewal sequence runs before the structural measure resumes.
Connecting rail protection to operational unit protection principles. The planning discipline required to protect an active railroad during adjacent bridge demolition shares its logical structure with protecting operational units during adjacent industrial decommissioning. In both cases, a live system that must not be interrupted occupies the space adjacent to the demolition work, and every phase of the demolition must be designed around that constraint rather than treating it as secondary. The Demolition Symphony Planner applies the same adjacent-operations notation framework to both contexts.
Post-phase track inspection notation. After each demolition phase that involves work within the rail influence zone, the Demolition Symphony Planner's score includes a track inspection measure: the Roadway Worker In-Charge inspects the track corridor for debris, geometry change, or signal system disturbance before train movements resume. The inspection result — clear or hold — is logged as a gate event before the track returns to normal operating status. This creates an auditable record that every phase's completion was verified by qualified personnel before the railroad resumed service.
What Happens Without Rail Protection in the Score
Demolition plans that address railroad protection only in a safety appendix typically fail at the interface between the structural schedule and the railroad's operating requirements. The structural schedule drives the work; the safety appendix describes compliance conditions; and the two are never reconciled until the railroad's project manager reviews the plan and identifies conflicts. Those conflicts arrive late — after procurement, after mobilization — and require last-minute plan revisions that compress the project timeline and increase costs.
The Demolition Symphony Planner writes railroad protection conditions into the phase score from the first planning session. When the structural engineer writes a measure that involves work within the influence zone, the score immediately requires the protection method notation and the Roadway Worker In-Charge gate entry. The conflict is surfaced in the planning room, not on the project site.
Late discovery of rail protection requirements is not a minor administrative problem. The safety buffer zone requirement for rail bridge demolition may mandate a shoofly installation that takes six to eight weeks to construct — a timeline that cannot be compressed regardless of project schedule pressure. When this requirement is discovered after the structural plan is finalized, the project faces either a six-to-eight-week delay or a re-engineering of the demolition approach to eliminate the need for shoofly work. The Demolition Symphony Planner prevents this scenario by requiring rail protection notation at the first planning session, so shoofly scope and timeline are known before procurement decisions are made.
Plan Your Next Span Removal
Bridge and overpass demolition teams working on rail-adjacent structures face a regulatory and operational environment that compounds the structural complexity of the work. The Demolition Symphony Planner gives your team a score where every cut, crane swing, and debris containment system is notated in relation to the active track — with railroad authority gates, shoofly sequences, and vibration monitoring thresholds written in before equipment mobilizes.
Rail shielding requirements for overpass demolition that are integrated into the score from the first planning session also create the documentation that railroad authority reviews and post-project audits require. When a railroad's project manager reviews the demolition plan and confirms that protection measures are specified at every applicable measure, that review — logged as a gate confirmation in the score — satisfies the railroad's internal documentation requirements and creates a record of authorization that protects the project team if a track safety incident is later attributed to the demolition operations.
Join the bridge and overpass demolition teams that are replacing disconnected safety appendices with a single scored sequence where railroad protection is built into every phase. Start your rail-adjacent bridge removal score with the Demolition Symphony Planner and give your team a plan where every track protection requirement is written into the phase sequence before the first cut is authorized — so your team never discovers a railroad protection conflict after the equipment is staged and the track authority is watching.
