Advanced Vibration Isolation for Bridges Near Historic Structures
When the Bridge Shakes What Cannot Be Shaken
Vibration isolation bridge demolition historic structures require engineering rigor equal to that applied to the structural sequence — this is the constraint most often treated as a safety footnote when it should govern method selection at every phase. Ground vibration control bridge demo requires the same systematic threshold analysis as structural load calculations: the limit is quantified, the method is selected against it, and vibration monitoring adjacent historic structure runs continuously throughout every active demolition phase.
A demolition team removing a highway overpass adjacent to a 19th-century masonry church faces a constraint that does not appear in the structural drawings: the church's rubble-stone foundations transmit ground vibrations differently than reinforced concrete, amplifying certain frequency ranges that a modern structure would dampen. Standard demolition vibration limits, calibrated for contemporary construction, may not protect rubble masonry from the frequency-specific amplification that causes crack propagation in lime mortar joints.
The APTI guidance on vibration limits for historic buildings establishes that the threshold for fragile historic structures — including masonry ruins and older wood-frame buildings — is as low as 0.08 inches per second peak particle velocity (PPV). The NCHRP 25-25 Task 72 Construction Vibration research sets a general threshold of 0.10 inches per second for historic and fragile structures, with case-by-case flexibility noted in the Pennsylvania DEP fact sheet for the same research. The Sonitus construction vibration data documents typical limits of 0.12 inches per second for historic structures in standard regulatory jurisdictions.
The gap between these thresholds and the vibrations produced by common bridge demolition methods is not theoretical. Standard hydraulic impact hammers used for pier demolition can generate PPV values of 0.5 to 2.0 inches per second at close range — five to twenty-five times the blast vibration limit heritage building preservation offices apply. Without active monitoring and low-vibration demolition technique bridge demolition teams select near historic structures, demolition adjacent to heritage assets becomes a damage event in progress.
Scoring Vibration Limits as Performance Parameters
The Demolition Symphony Planner treats each historic structure's vibration threshold as a performance parameter written into every structural action note within its influence radius. A measure that involves impact demolition near a historic threshold carries a PPV limit annotation: the method selected for that measure must be documented to produce vibrations below the threshold at the structure's foundation. If the default method exceeds the limit, the score flags the conflict and requires a method substitution before the measure is authorized.
Pre-Score Characterization — Establishing the Historic Threshold. Before the demolition score is drafted, a vibration characterization assessment determines the applicable threshold for the adjacent historic structure. This assessment considers construction material and era, foundation type, current condition, and applicable regulatory limits. The ASCE PPV Limits Standards document the USBM RI 8507 standards that have governed blast vibration limits since 1980 — the baseline against which modern monitoring equipment is calibrated. The threshold established by this assessment becomes the governing performance parameter for every demolition measure within the influence radius.
Method Selection as a Score Constraint. Low-vibration alternatives to impact demolition include hydraulic shears, wire sawing, waterjet cutting, and controlled diamond sawing — all of which produce significantly lower PPV at equivalent distances from the work area. The Demolition Symphony Planner encodes method constraints at the measure level: if the historic threshold is 0.10 inches per second and the nearest pier is within 50 meters of the historic structure, the score restricts the pier demolition measure to methods documented to stay below threshold at that distance. The method constraint is not a recommendation in the project specification — it is a pre-measure gate condition that cannot be overridden without an engineering authorization.
Continuous Monitoring as a Real-Time Score Feed. Vibration monitoring at historic structures during demolition serves two purposes: it provides real-time confirmation that each measure is staying within threshold, and it produces the compliance record required by permit conditions and regulatory agreements. Teams using structural health sensors for bridge monitoring for the demolition structure itself will recognize the parallel monitoring architecture — the same sensor deployment logic applies to the adjacent historic structure, with the important difference that the monitored structure is receiving vibrations rather than experiencing them internally.

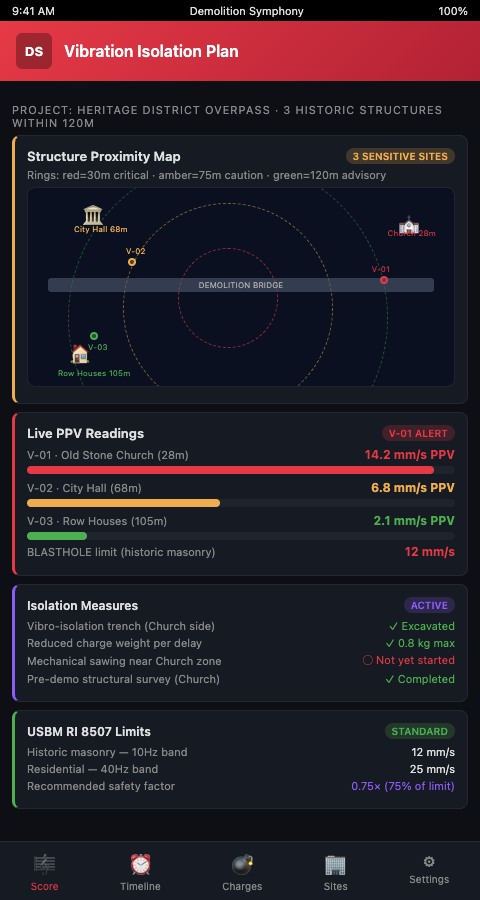

The Demolition Symphony Planner displays real-time monitor readings against the threshold annotation for each active measure. When readings approach the threshold — say, at 80% of the limit — the score generates an advisory notation. When readings exceed the threshold, the measure is flagged for immediate review and the next measure is locked until the exceedance is resolved and the method is adjusted. Teams monitoring vibration near rail infrastructure will recognize this from rail line protection during adjacent bridge removal, where vibration thresholds for track bed stability follow the same monitoring and response logic applied here to historic masonry.
Influence Radius Mapping in the Score Baseline. Not all measures in a bridge demolition sequence are within the influence radius of the adjacent historic structure. The Demolition Symphony Planner establishes an influence radius at the outset of planning — derived from site-specific propagation modeling or from conservative estimates based on soil type and distance. Measures outside the influence radius are not subject to the historic threshold constraint. This boundary prevents unnecessary method restrictions from being applied to structural actions that pose no vibration risk to the historic asset, while ensuring that measures within the radius are consistently governed by the threshold.
Advanced Tactics for Vibration-Sensitive Demolition
Vibration isolation barriers between demolition and historic structure. Physical vibration attenuation through open-trench barriers or sheet pile lines between the demolition zone and the historic structure can reduce transmitted PPV by 30 to 60% at short distances. The SLR Construction Vibration guidance documents barrier design parameters for typical construction scenarios. When a barrier is installed, the Demolition Symphony Planner updates the effective threshold for measures within the barrier's zone of influence, reflecting the measured attenuation rather than the free-field propagation assumption.
Frequency analysis alongside PPV monitoring. PPV is the primary regulatory metric, but frequency content determines damage potential for historic masonry more precisely than PPV alone. A vibration event at 8 Hz that reaches 0.09 PPV at a rubble-stone foundation may cause more crack propagation than a 40 Hz event at 0.11 PPV, because lower-frequency vibrations are closer to the resonant frequency of large masonry elements. Advanced monitoring programs capture frequency spectra rather than PPV alone, and the Demolition Symphony Planner supports spectrum-based threshold notation for projects where the historic structure's condition assessment has identified frequency-specific vulnerabilities.
Pre-demolition condition survey as a score prerequisite. If an historic structure adjacent to a bridge demolition zone has pre-existing crack patterns, settlement features, or documented vulnerabilities, any post-demolition damage claim will reference the pre-demolition condition. The Demolition Symphony Planner marks the condition survey completion as a mandatory pre-score prerequisite — not a pre-measure condition, but a prerequisite for the score itself. Without a documented baseline condition, the demolition team has no protection against claims that demolition vibrations caused damage that pre-existed the project.
Cross-niche parallel — vibration prediction for urban implosion. Teams who have managed high-rise demolitions near sensitive structures will recognize this methodology from vibration prediction for urban implosion projects, where blast vibration modeling and real-time monitoring serve the same function as the bridge demolition approach described here. The threshold values differ — historic structures use lower limits than contemporary construction — but the planning framework is identical: establish the threshold, select methods that comply, monitor continuously, and gate the sequence on monitoring results.
When the Score Protects What Cannot Be Rebuilt
The economic logic of vibration monitoring and method substitution is straightforward: a crack in a 19th-century church wall attributed to demolition vibrations will generate a damage claim that dwarfs the cost of the monitoring equipment and the low-vibration method premium. More fundamentally, the damage to an irreplaceable historic resource cannot be compensated by money — it is permanent.
The NCHRP Task 72 case-by-case flexibility guidance acknowledges that vibration limits for historic structures require judgment beyond a single threshold value. The Demolition Symphony Planner provides the framework for that judgment to be applied systematically: the threshold is documented, the method constraint is explicit, the monitoring is continuous, and the gate is automatic. No individual decision in the field needs to carry the full weight of protecting an historic asset — the score carries it.
Ground vibration control for bridge demo work near heritage assets is also a permitting and legal obligation, not just an engineering preference. State Historic Preservation Offices (SHPOs) and local historic preservation commissions frequently attach vibration limit conditions to Section 106 review approvals for projects affecting the setting or integrity of adjacent listed properties. When those conditions are not tracked within the demolition plan, field crews executing measures without access to permit condition details may inadvertently violate regulatory thresholds. The Demolition Symphony Planner encodes SHPO and local preservation commission conditions as annotated gate requirements on the relevant measures — identical in structure to the permit condition gates used for environmental regulatory compliance — ensuring the low-vibration demolition technique requirements for bridge work near heritage assets are as visible as structural sequence requirements.
Encoding the Historic Tolerance Into Every Note
Bridge and overpass demolition teams working near historic structures must make the vibration threshold a design parameter, not a compliance afterthought. Every structural action note in the demolition score must be written against the threshold. Every method selection must be validated to stay below it. Every monitoring reading must be visible to the team executing the measure.
When monitoring detects a reading approaching the blast vibration limit for the heritage building in the influence radius, the response protocol must be pre-planned, not improvised. The Demolition Symphony Planner supports pre-planned response by encoding escalation thresholds directly in the measure notation: at 80% of the PPV limit, the score displays an advisory; at 100%, the measure is flagged for immediate review; above the limit, the next measure is locked until the exceedance is investigated and the method is adjusted. This automated escalation structure removes the need for individual field judgment at the moment of maximum time pressure — the score's response is defined in advance by the structural engineer who set the threshold, not by the equipment operator who is watching the monitor.
