Integrating Structural Health Sensors into Active Bridge Monitoring
The Structure That Was Never Designed to Be Half Gone
In 2025, the ASCE Infrastructure Report Card identified more than 46,000 structurally deficient bridges in the United States — structures carrying loads in degraded conditions that deviate from their original design assumptions. Many of these will be removed within the next decade. But the planning challenge for demolition teams is not just the condition of the bridge before work begins; it is the condition of the bridge at each intermediate state during demolition, when spans and load-bearing elements have been partially removed and the remaining structure is in a configuration that the original engineers never analyzed.
Integrating structural health sensors bridge monitoring during active demolition gives teams the continuous data stream that periodic inspections cannot provide. A structural health monitoring review for bridges documents that strain gauge monitoring bridge removal phases depend on, alongside accelerometers, as the primary sensor types for measuring the forces and movements that indicate whether a structure is behaving within expected bounds. Applied to demolition, these sensors do not just monitor condition: they gate the sequence. If strain in a pier exceeds the threshold predicted for the current demolition phase, the next phase does not begin until the anomaly is resolved.
Real-time bridge stability monitoring demo separates a sensor deployment that documents an incident from one that prevents it. The AUTC bridge structural health monitoring study found that remote SHM reduces the frequency of field inspections required — but in the demolition context, the sensor array bridge deconstruction supplements rather than replaces inspection, providing the continuous feed between site visits that no human monitor can maintain across an entire structure simultaneously. IoT bridge health monitoring demolition extends that capability to remote data access and cloud logging, enabling the structural engineer to review readings across the full sensor array without being physically present at the structure for every shift.
Writing Sensor Thresholds into the Phase Score
The Demolition Symphony Planner integrates structural health sensor monitoring into bridge demolition scheduling by treating every sensor threshold as a gate notation in the phase score. Just as a musical conductor reads the dynamic markings on the score to know how loudly each instrument should play, the demolition superintendent reads the sensor threshold notation to know what structural conditions must exist before each phase may proceed. The sensors are the instruments; the Demolition Symphony Planner is the sheet that reads them.
Sensor placement annotation as the score's key signature. Before any phase-measure is written, the Demolition Symphony Planner requires a sensor placement plan as the score's key signature. For real-time bridge stability monitoring during demolition, the critical measurement locations are: pier cap deflection points (where changes indicate unexpected load redistribution), girder midspan strain (where changes indicate moment redistribution as adjacent spans are removed), abutment movements (where changes indicate global settlement or thrust), and deck edge displacement (where changes indicate torsional behavior under asymmetric loading). Each sensor is identified by type, position, and measurement parameter, and assigned a sensor ID that the score references in every phase measure that the sensor governs.
Vibrating wire gauges for long-duration monitoring. Bridge monitoring sensor applications documented by Encardio Rite identify vibrating wire gauges as particularly suited to long-duration structural monitoring applications — their stability over days and weeks makes them appropriate for multi-phase demolition projects where a single sensor may govern twenty phase-measures over six weeks. The Demolition Symphony Planner writes the sensor type alongside the placement notation so the field team knows what readings are reliable for long-term threshold comparisons and what readings are transient responses to equipment vibration.
Real-time data acquisition and alert protocol. The Dewesoft bridge health monitoring approach documents real-time data acquisition as the standard for active monitoring applications. For demolition work, real-time acquisition means that threshold exceedances are detected during the phase — not discovered when the data is downloaded at shift end. The Demolition Symphony Planner writes the alert protocol as a branch notation in each phase measure: sensor reading exceeds threshold — hold cue activates — structural engineer notified — review gate opens — phase may not resume until engineer clears the gate. This is not a field judgment sequence; it is a pre-written response composition.
Ground-borne vibration monitoring as a parallel track. Demolition operations generate significant vibration through mechanical breaking, saw cutting, and crane loading. FPrime's ground-borne vibration monitoring guide establishes seismograph monitoring as the verification method for compliance with PPV thresholds near sensitive receivers — including adjacent structures and traffic infrastructure. The Demolition Symphony Planner writes the seismograph position and PPV threshold as a parallel track in the score, running alongside the structural phase sequence. An exceedance on the vibration track generates the same hold-and-review response as a structural threshold exceedance — the two tracks are co-equal gate conditions.
Connection to finite element analysis validation. The sensor data collected during demolition is most useful when it is compared against predicted values from a structural model. The partial bridge stability FEA approach produces the predicted values that the sensor network verifies. When measured strain or deflection matches FEM prediction within acceptable tolerance, the phase gate clears. When measured values diverge significantly from predicted values, the gate holds and the divergence is investigated before the sequence advances.
Advanced Tactics for Demolition-Phase Sensor Management
Threshold recalibration between phases. The structural response that is normal in Phase 1 — when three spans remain — is not the same as the normal response in Phase 4, when only one span remains. Sensor thresholds must be recalibrated at each phase transition to reflect the new structural configuration. The Demolition Symphony Planner writes threshold recalibration as a gate condition between phases: the structural engineer updates the FEM model with the Phase N final configuration, the updated model produces new predicted values, and those values replace the Phase N thresholds with Phase N+1 thresholds before the next phase begins.
Sensor redundancy notation. A single strain gauge at a critical pier cap is a monitoring system that fails when the gauge fails. The Demolition Symphony Planner writes sensor redundancy into the placement key signature: critical measurement locations have a primary and a backup sensor, and the backup is logged as the fallback for threshold comparison if the primary drops out. A phase may not advance on a degraded sensor array — the score requires that the monitoring system be operational before the phase entry gate can clear.

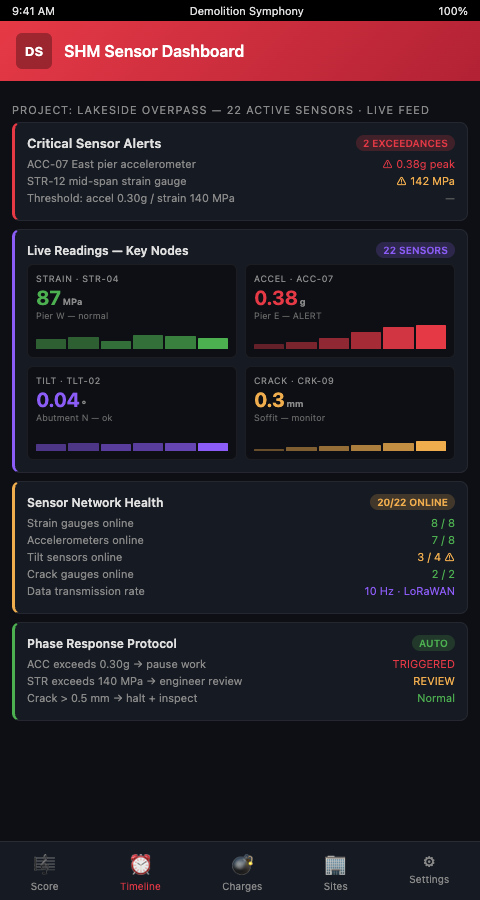

IoT data transmission and logging protocol. For multi-day or multi-week demolition projects, IoT bridge health monitoring for demolition enables continuous data transmission to a project cloud log that the structural engineer can access remotely. The Demolition Symphony Planner writes the logging protocol into the score: data transmission frequency, alert notification method (email, SMS, platform dashboard), and the daily review requirement. A structural engineer who reviews the log daily is more likely to catch a gradual drift in readings — a trend that approaches threshold without triggering a single-point alert — than one who reviews only at phase transitions.
Connecting sensor data to structural interdependence monitoring. The sensor array's primary value is at the structural interfaces where multi-span bridge structural interdependence creates load redistribution risks. When Span 2 is removed and the sensors at the Span 1/Span 3 interface show a redistribution pattern that matches prediction, the sequence can advance confidently. When the redistribution pattern diverges, the sensor data provides the earliest possible warning — before any visible deformation confirms the anomaly. The Demolition Symphony Planner's notation makes those interface sensors the explicit gatekeepers for the affected phases.
Digital twin closed-loop monitoring. A digital twin SHM application for bridge structure monitoring demonstrates closed-loop monitoring where the digital twin updates its structural model with each sensor reading, continuously revising its predictions based on actual behavior. The Demolition Symphony Planner's gate notation architecture is compatible with digital twin integration: instead of comparing sensor readings against static FEM predictions, the gates compare against continuously updated digital twin predictions — adapting the sequence in real time rather than against a fixed baseline.
BIM model integration for sensor visualization. BIM model integration in stadium deconstruction planning uses three-dimensional structural models to visualize the sequence and its consequences. For bridge demolition sensor monitoring, the same BIM model can display sensor readings as a spatial overlay — each gauge's current value visible at its location in the model — giving the structural engineer a real-time spatial view of the bridge's behavioral state rather than a list of numbers. The Demolition Symphony Planner references the BIM model integration as an optional visualization layer for projects where the digital model is available.
The Cost of Monitoring Without Integration
A sensor array installed on a bridge under demolition but not connected to the phase sequence is a monitoring system that produces data without consequence. If the strain gauge at Pier 3 shows a reading 15% above prediction and nobody in the execution chain has a threshold notation that tells them what to do with that reading, the data exists but the response does not. The phase proceeds, the anomaly is noted in a log, and the structural event that the anomaly was predicting occurs on schedule.
The Demolition Symphony Planner resolves this by treating sensor data as a structural input to the phase score rather than a parallel monitoring output. The reading and the response are written in the same document, reviewed by the same team, and executed by the same site superintendent.
The distinction matters most on multi-week demolition projects where the structure's condition changes incrementally between phases. A single anomalous reading on day one may be within measurement noise. The same reading on day seven, consistently elevated by 12%, is a divergence that the FEA model did not predict — and that divergence is only visible when the sensor log is being actively compared against the phase score's predicted values. A sensor array that produces data without a connected scoring framework gives the team raw numbers; the Demolition Symphony Planner gives them a gated response protocol that converts those numbers into executable decisions.
Plan Your Next Span Removal
Bridge and overpass demolition teams managing multi-phase removals on structurally complex or aging spans need more than a monitoring system — they need a monitoring system that is wired into the phase sequence. Score your bridge demolition with the Demolition Symphony Planner and build a sensor-integrated plan where every strain gauge threshold, alert protocol, and structural review gate is written into the score before your team steps onto the bridge — so the structure's actual condition governs what happens next rather than the schedule's optimistic assumptions.
IoT bridge health monitoring for demolition managed through the Demolition Symphony Planner also creates the sensor compliance record that owners and insurers require for high-risk bridge removal operations. When each sensor reading is logged against the predicted FEA value for the current partial structure state — with gate confirmations documenting when readings were within tolerance and escalation records documenting when they were not — the project team has a complete structural monitoring audit trail. Real-time bridge stability monitoring during demolition, documented through the scored gate system, transforms raw sensor data into a structured compliance record that demonstrates engineering due diligence at every phase of the project. Start your sensor-integrated bridge demolition with the Demolition Symphony Planner and give your bridge and overpass demolition team a structural health monitoring system that is part of the plan, not separate from it.
